Features
15.6 inch meeting room display booking tablet SH1583WA
Functional features
Optional features
Meeting room display booking tablet with versatile Touch Screen Solution
Meeting room display booking tablet is a versatile and flexible display with a wide range of applications. They can be used in corporate spaces in conjunction with meeting room booking software utilising the LED frame as a room availability indicator. These displays can also be used as point of sale touch screens in a host of locations too, such as retail, entertainment, hospitality, museums and art galleries.
Power your meeting room display booking tablet by using the power cable provided or supply the power over an Ethernet cable. This minimises the number of cables needed for installation as you can supply power and internet connectivity to the screen simultaneously.
Gallery
Specification

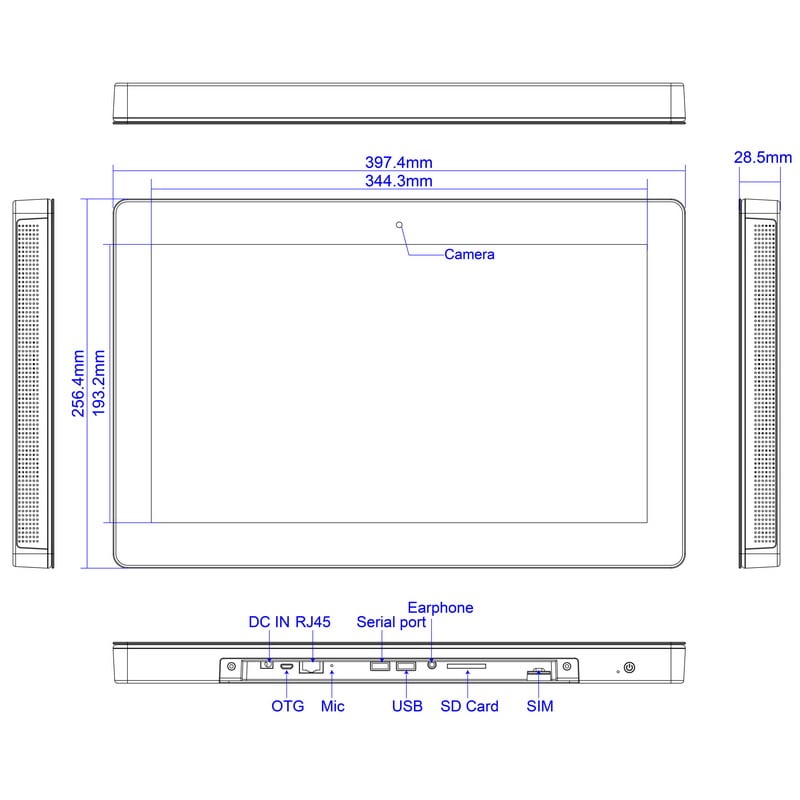

Package size:
- Unit: 397.4mm * 256.4mm * 28.5mm 1.3KG.
- Giftbox: 485mm * 295mm * 85mm.
- Carton 4pcs/CTN: 490mm * 360mm * 313mm 10kgs.
Information Sheet:
| 15.6 inch meeting room display booking tablet SH1583WA | |
|---|---|
| CPU | RK3399 Dual-core A72+quad-core A53 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android |
| Touch screen | 10-Point capacitive touch |
| Panel | 15.6"LCD panel |
| Resolution | 1920*1080 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250cd/m2 |
| Aspect Ratio | ,16:9 |
| WiFi | 802.11b/g/n |
| Ethernet | 10M/100M ethernet |
| Buletooth | Bluetooth 4.0 |
| Card slot | SD card |
| USB | USB Host |
| Micro USB | USB OTG |
| USB | USB for serial (RS232 format) |
| RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4， 25.5W ) |
| Power jack | DC power input |
| Earphone | 3.5mm earphone + Micphone |
| Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K |
| Audio format | MP3/WMA/AAC etc. |
| Photo | jpeg |
| SIM Slot | 4G LTE (optional) |

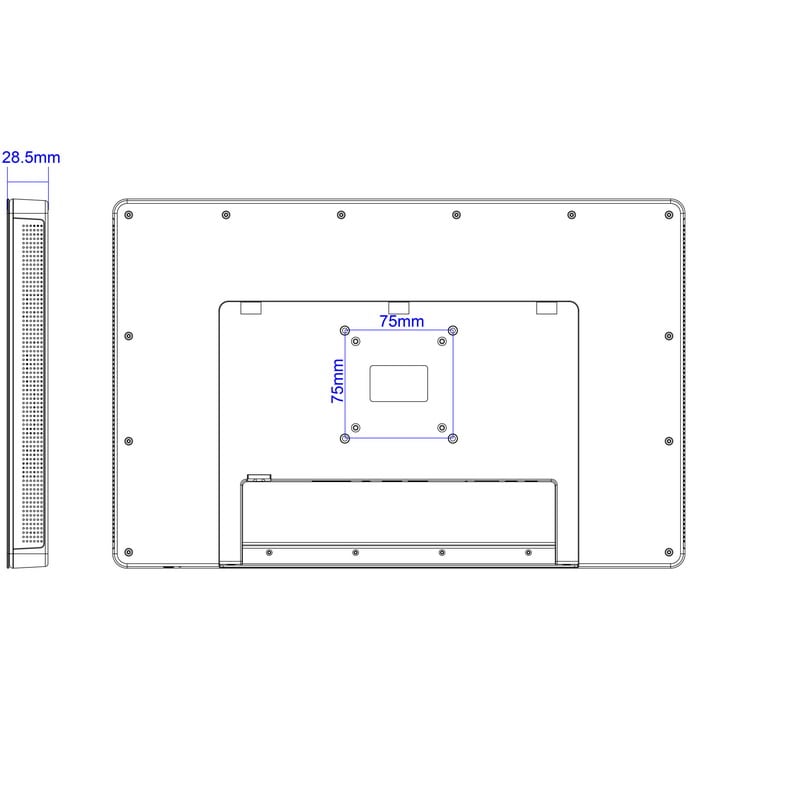

| VESA | 75*75mm |
| Speaker | 2*3W |
| Microphone | yes |
| LED light bar | LED light bar with RGB and mixed color |
| NFC | Optional ,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | Front camera,5.0M/P |
| Working temp | 0--40degree |
| Certificates | |
| Language | Multi-language |
| Adapter | Adapter,12V/2.0A |
| User manual | yes |
