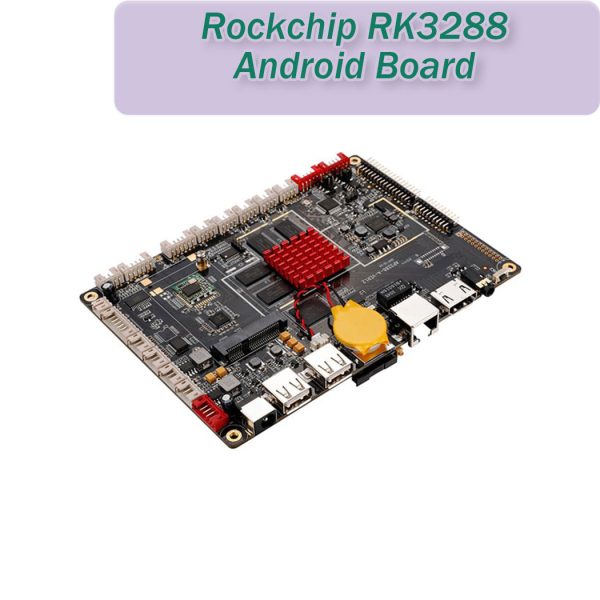

Rockchip rk3288 android Pcba Board

Rockchip rk3288 android Pcba Board

✨Rockchip RK3288,Quad-core ARM Cortex A17 1.8 GHz;
✔️DDR3 2G // EMMC 8GB/16G/32G optional(standard 8GB);
✔️LVDS interface(dual 10 bits),maximum support 1920×1080; EDP port,maximum support 2560*1600;
✔️RJ45 port, Bluetooth, WIFI module, With 3G/4G,support.

$85.00

SKU: SHRK3288 Category: Tag:

Order Now

Table of Contents
    Add a header to begin generating the table of contents

    Android PCBA motherboard RK3288 Android 6.0/8.1 Board MIPI LVDS eDP LCD Driver Main Board

    Rockchip rk3288 android Pcba Board

    Product introduction:

    With the blessing of 5G era, intelligent display devices have undergone iterative upgrading in display technology and are developing towards 3D and ultra-high definition 2K. More and more interactive advertising machines, intelligent self-service terminals, intelligent retail terminals and touch-control all-in-one devices present a strong market demand for hardware platforms that can support 2K ultra-high definition output.

    Rockchip rk3288 android Pcba Board can support real 2K ultra-high definition display, mainly relying on ultra-high core processor configuration, and can support 2K real-time hard decoding H.265 and HDMI2.0 to realize HDMI 2K point screen.

    Application scenario:

    Rockchip rk3288 android Pcba Board, stable and reliable operation, with strong hard decoding capability and rich expansion interfaces, it can be widely used as Android touch screen, Stretched displays, LCD bar display, Kiosk display and Wifi tablet, etc.

    Information Sheet:

    SHRK3288 Rockchip rk3288 android Pcba Board
    CPU Rockchip RK3288,Quad-core ARM Cortex A17 1.8 GHz
    GPU Quad-core ARM Mali-T764 MP
    Memory DDR3 2G
    Storage EMMC 8GB/16G/32G optional(standard 8GB)
    Screen interface LVDS interface(dual 10 bits),maximum support 1920×1080; EDP port,maximum support 2560*1600;
    Board backlight Support 3.3V/5V/12V optional
    Network RJ45 port,support Ethernet 100M.
    Bluetooth + WIFI module ,support Wi-Fi 802.11b/g/n,2.4G, Support Bluetooth 4.0,
    With 3G/4G,support WCDMA,EVDO,CDMA,GSM,2G/3G support 850/900/1800/1900MHz/2100MHz
    Image rotation Support 90°/180°/270° manual rotation
    Real-time clock Built-in real-time clock powered battery ,support timing switch
    System watchdog Support software and hardware watchdog
    Interface Support highest 800W pixel USB camera
    Support HDMI 2.0,4K HD Input/SupportLVDS+HDMI Output and Synchronous and Asynchronous display
    6 USB HOST(4 pins,2pins external)
    Four RS232 serial port(TTL/232 optional),support external serial ports: extended transducer, one/two-dimensional code scanner, card reader etc.
    SD/TF Card extension, support up to 64gb
    D class super built-in speaker,8Ω10W*2
    Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GP format
    Video Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 1080p decoding of equal Video format,and h.265 encoded 4k HD video ,HTML5 video playback, Flash10.1 playback
    Picture Support JPG,BMP,PNG format etc, support pictures rotation/slide show/magnification function
    Touch screen Support IR touch/Resistive Touch/Capacitive touch
    Power DC12V Input or DC12V 5V STB
