Wall mount android touch screen pc

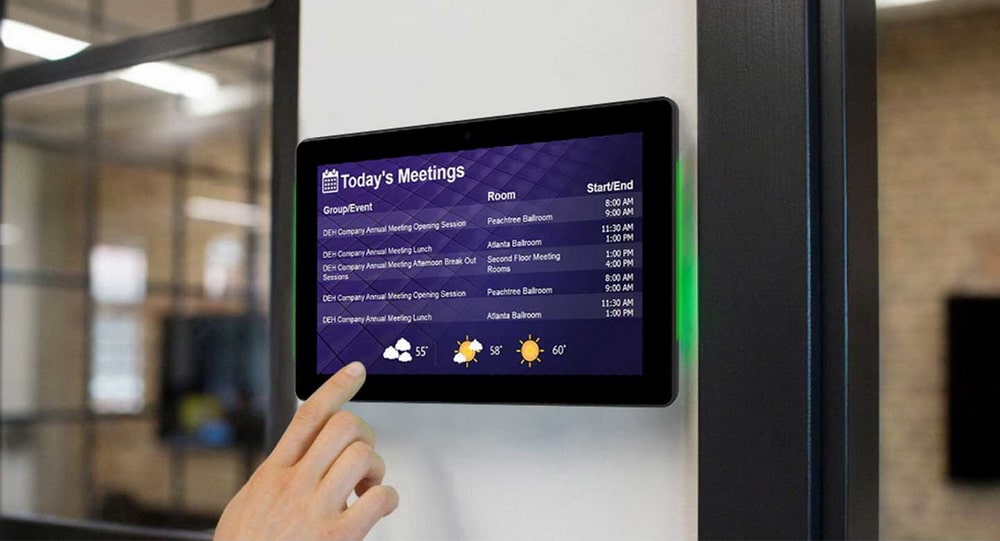

Application scenario:
- Compare Wall mount android touch screen pc Prices Find Lowest Price on ShiningLTD
Product introduction:

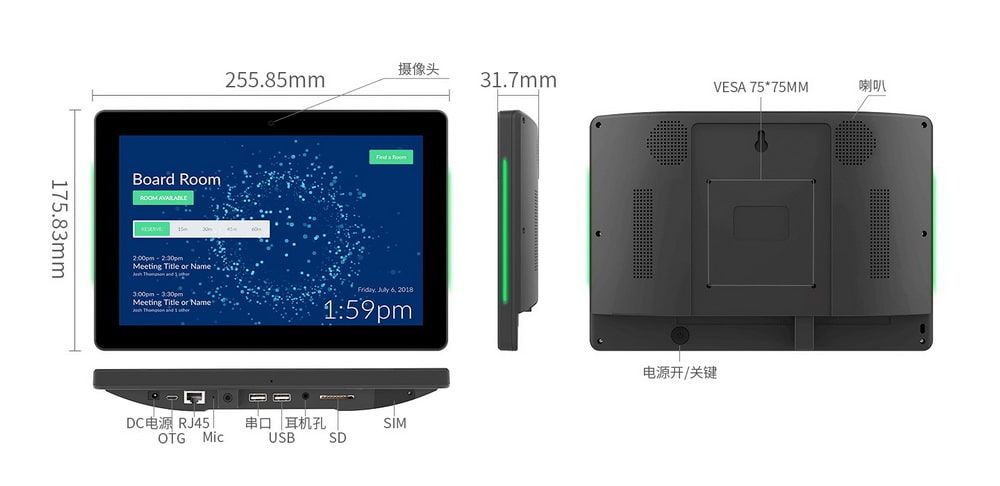

- Unit: 255.8mm * 175.8mm * 31.7mm 0.74KG.
- Giftbox: 390mm * 220mm * 68mm.
- Carton 5pcs/CTN: 405mm * 363mm * 240mm 11.8kgs.
Information Sheet:
System & Display
| CPU | RK3288,Quad-core cortex A17,1.8G |
|---|---|
| RAM | 2GB |
| Internal memory | 16GB |
| Operation system | Android 8.1/9.0 |
| Touch screen | 10-Point capacitive touch |
| Panel | 10.1"LCD IPS panel |
| Resolution | 1280*800 |
| Active area | 216.96(H)x135.6mm(V) |
| Display mode | Normally black ,IPS |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 280cd/m2 |
| Aspect Ratio | ,16:10 |
Network & Interface
| WiFi | 802.11b/g/n |
|---|---|
| Ethernet | 100M/1000M ethernet |
| Buletooth | Bluetooth 4.0 |
| Card slot | SD card |
| USB | USB Host |
| Micro USB | Micro USB OTG |
| USB | USB for serial port, RS232 format |
| RJ45 with POE | Ethernet port (with POE function) |
| POE | IEEE802.3at, POE+, Class 4, 25.5W |
| Power jack | DC 12V power input |
| Earphone | 3.5mm stereo headphone output + microphone |
Other
| NFC | Optional,NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
|---|---|
| Camera | 2.0M/P,Front camera |
| Microphone | Microphone |
| Speaker | 2*1.5W |
| LED Light bar | LED light bar with RGB |
| Working temp | 0--40degree |
| Certificates | CE/FCC/RoHS |
