27 inch pc monitor SH2703AD, Optimized For Custom Integrations.
- Featured high resolution, high brightness 27inch Full HD screen 1920×1080 pixels.
- Multi-touch Projected Capacitive Touchscreen With Tempered Glass Cover, ideal for commercial touch kiosk in public use.
- Powerful hardware with superior performance & custom options for commercial & industrial applications.
- Built-in stereo audio & digital audio output, VESA mount.
Functional features
Gallery
Specification
Information Sheet:
| SH2703AD | Android tablet 27 inch pc monitor |
|---|---|
| Screen size: | 27inch |
| Backlight: | LED |
| Angle: | 178/178 UD/LR |
| Brightness: | 350cd/m2 |
| Aspect ratio: | 16:09 |
| Display Specifications: | 1920X1080 |
| System: | Android 4.4/5.1 |
| CPU: | RK3368 |
| Storage: | EMMC 8G |
| Memory: | DDR 1G |
| Support video format: | AVI, MKV，WMV，MOV，MP4，DAT，VOB，PMP,MPEG，FLV，ASF ，TS， TP，3GP，MPG |
| Support pic format: | BMP、JPEG、PNG、GIF |
| Touch function: | 10 point touch, finger or touch pen, Reaction time as 4ms, Durability ≥ 50 million times touch, Full-angle anti-glare |
| Optional feature: | Bluetooth 4.0, R232 / R485 port |
| Accessories: | AC power cable (With Power Adapter), Remote control, Antenna, Wall bracket, User manual; |
| Power: | AC110-240V (Input:48W Standby<1W) |
| Autio output: | 8Ω10W * 2 |
| Port: | DC12V*1，USB*1，OTG*1，WLIN RJ45*1 |
| Material: | Front toughened glass / Aluminum frame / Steel plate material |
| Color: | Front frame silver / Back shell black |

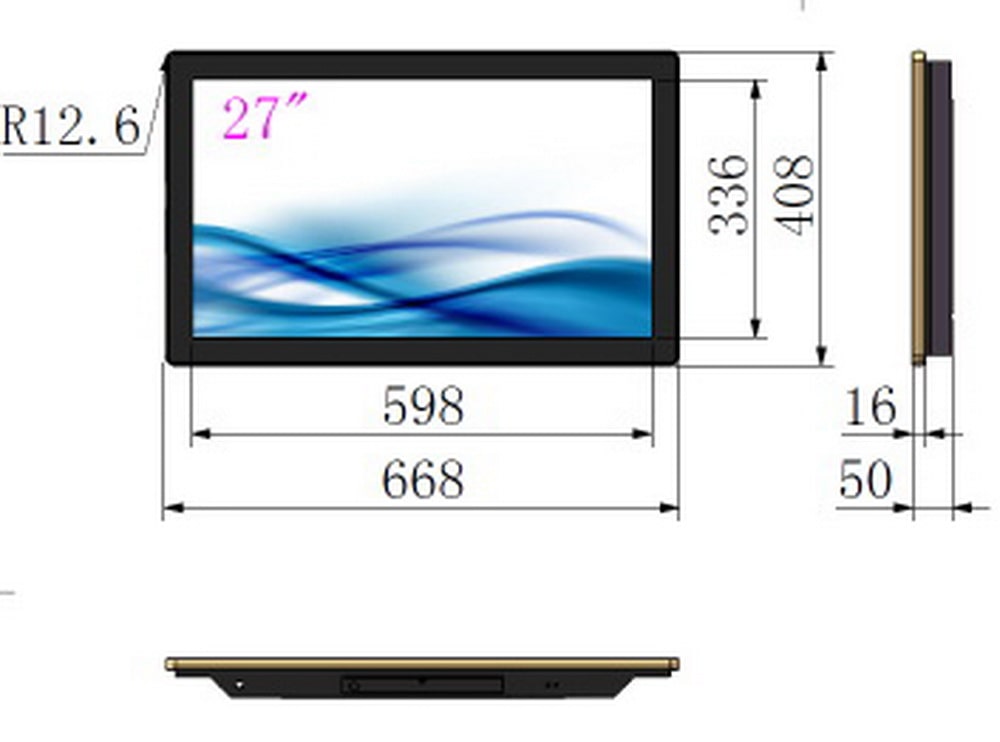

| Cabinet Size: | 668mm*408mm*50mm |
| Function: | Supports all video, file, network streaming media format; |
| Pre-installed native Andrews system, built-in google Play Store and other Google applications | |
| Also pre-installed custom system, including customized Andrews system or raspberry system | |
| Equipped touch-screen with full-glass structure, with ultra-high sensitivity, and support all OS system |
Shiningltd. was established in 2004. It is a high-tech enterprise specialized in R&D, design, production, and sales of LCD digital signage.
Our factory has a number of automated production lines, covering the entire production system from product design, sheet metal processing, and assembly of finished products, to meet production requirements of different scales and OEM/ODM OEM cooperation.
Our products have completely independent intellectual property rights, currently provide 7-100 inch LCD digital signage products, including infrared touch screen, multimedia LCD advertising display, touch screen display, and so on.
Shiningltd introduced the ISO9001:2008 quality management system. Passed the CCC, CE, UL, ROHS, ERP energy-saving certification, to provide customers with quality products.
Through the perfect marketing network and convenient after-sales system, Our products are widely used in education, energy, finance, advertising industry, medical and other fields.
