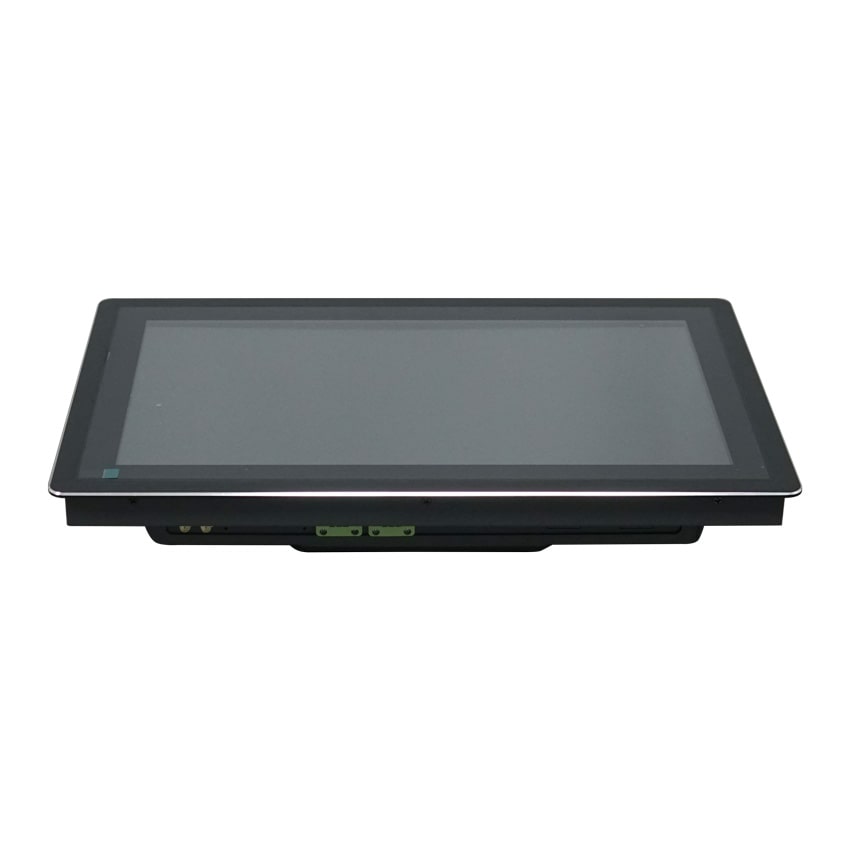

SH1511AIO(15.6inch)
Information Sheet:
| SH1511AIO(15.6inch) | All in one touch screen pc |
|---|---|
| Hardware parameters | |
| CPU | Intel J1900(Can UpgradeI3/I5/I7) |
| Frequency | Quad-core and four-thread main frequency 2.0GHz |
| Chipest | Intel Bay trail SOC |
| Memory | DDR3 4GB |
| Storage | SSD 128G |
| Audio | Integrated Realtek ALC662 HD decoding control chip |
| Network | Integrated RTL8111E Gigabit network card chip |
| Wireless network | 2.4G wireless module (5G module optional) |
| Graphics | HD Graphics |
| System | WIN10 professional edition |
| Built-in speaker | 8Ω3W （Up to 5w audio output support ） |
| System Monitoring / Watchdog | Support for CPU temperature detection, fan speed, and system temperature |
| Display parameters | |
| Size | 15.6inch |
| Panel | Industrial A-gauge LCD display panel |
| Backlight | LED backlight |
| Display ratio | 16:9 |
| Resolution | 1920*1080 |
| Contrast | 300:1 |
| Brightness | 300CD/M2（500/800/1000CD optional） |
| Life | ≥50000H |
| Color | 16.7M |
| Angle | 160° |
| Touch configuration | |
| Touch form | Projection capacitive touch (optional non-touch and resistive touch) |
| Writing Mode | Finger or capacitive pen |
| Touch process | G+G |
| Surface hardness | 6H |
| Life | ≥5000 million times touch |
| Light transmittance | ≥87% |
| Interface parameters | |
| Power | DC5.5*2.5mm |
| HDMI | HDMI*1 |
| VGA | VGA*1 (support for dual display) |
| RS232 | RS232*2 |
| USB | USB2.0*3 USB3.0*1 |
| Internet | RJ45*1 |
| Audio | MIC-IN*1 LINE-OUT*1 |
| RS485 | None（Can extended 1-2RS485） |
| GPIO | None（Can customizable extension for a 7-way gpio ） |
| Antenna | SMA（can Extended bluetooth） |
| GPS | None（can Extended） |
| 3G/4G | None（can Extended） |
| Other parameters | |
| Power input | 12V-5A Industrial external power adapter |
| Max power consumption | ≤48W |
| Working temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ |
| relative humidity | 5%-85% |
| Material | aluminium alloy |

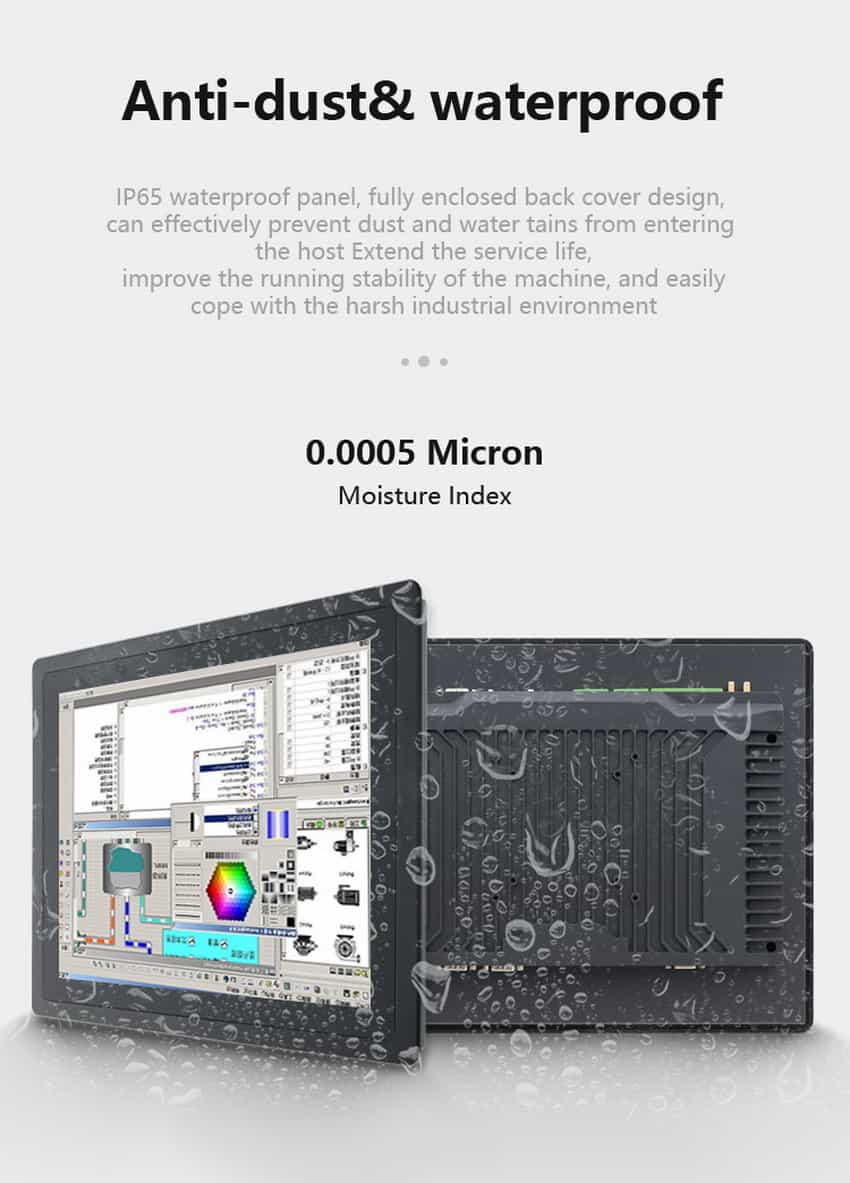

| Levels of protection | Front panel IP65 dustproof and waterproof / rear cover fully enclosed and dustproof IP40 |
| 1Warranty | 1 year |
If need more detailed and updated specifications, or need customized requirements, Please contact us
Features
Waterproof dustproof best all in one touch screen pc
Introducing the perfect Waterproof dustproof all in one touch screen pc designed to withstand harsh conditions. This PC features front IP65 and adjustable brightness monitors, making it suitable for use in environments where dirt, dust, moisture, and other foreign debris may be present. The PC is available with flexible mounting solutions, such as panel mount, wall, VESA mount, embedded mount, open frame, and tabletop, making it adaptable to different working environments.
Waterproof dustproof all in one touch screen pc is equipped with enhancements such as high brightness and sunlight-readable technology, shock and vibration-resilient components like industrial-grade motherboards, EMI protection, and wide operational temperatures and voltage, ensuring higher environmental reliability and performance. Moreover, this PC features a rugged aluminum alloy chassis, offering optimal durability, and a fanless design ensures energy-efficient and noiseless operation.
All in one touch screen pc is ideal for use in various fields, including industrial field control display, embedded devices, telecommunications, network rooms, monitors for trains, subway stations, and ports, vehicle-mounted displays, rugged, or military-standard displays, and advertising machines. It is CE and RoHS compliant, making it perfect for anyone looking for an All in one touch screen pc that is efficient, reliable, and suitable for use in harsh environments.
The PC is designed to withstand harsh conditions, with front IP65 and adjustable brightness monitors, making it suitable for use in environments where dirt, dust, moisture, and other foreign debris may be present. It also has flexible mounting solutions, a rugged aluminum alloy chassis, shock and vibration-resilient components, and high brightness and sunlight-readable technology.
This PC is specifically designed to handle the challenges of industrial and rugged environments. Its durable construction and protective features ensure reliable performance, even in extreme conditions. It is also energy-efficient and noiseless, making it well-suited to a wide range of applications.
This PC is suitable for use in a variety of fields, including industrial field control display, embedded devices, telecommunications, network rooms, monitors for transportation hubs such as trains, subway stations, and ports, vehicle-mounted displays, rugged or military-standard displays, and advertising machines.
Yes, this PC is CE and RoHS compliant, ensuring that it meets the highest standards of safety and environmental protection.
Functional features
You may be interested in 15 inch lcd screen, all in one monitor, all in one touch screen computer, Transportation digital signage, related Posts.
The all in one touch screen pc is also suitable for restaurants and hotels.
Meal ordering and food prices are topics of great public concern.
Apply digital signage, according to voice, video, picture, text, price, order, etc., simply and economically apply Ethernet technology. Deliver multiple services in an all-around way to realize multimedia advertisements for restaurants, open prices and open orders, satisfying customers' right to know and the enterprise's advertising effect.
Gallery
Once again
FAQ guide for All in one touch screen pc:
How should I place an order for All in one touch screen pc?
You can easily contact us through the website. Through communication, you can reach an order transaction on the basis of a detailed understanding of customer requirements, All in one touch screen pc product parameters, customization, delivery date and other requirements;
A more direct way is to click the “same as” link to view our All in one touch screen pc products on Alibaba.com station to generate credit guarantee orders to get trade assurance to protect your Alibaba.com orders.
What is the average price of All in one touch screen pc?
The dollar price marked on this product page is $352.00, The said price is the net ex factory reference price of the goods and unpackaged, excluding value-added tax or any similar tax.
As a B2B product, All in one touch screen pc will pay more attention to the differences of specifications and parameters, packaging and transportation prices in terms of price…
So please contact us for more accurate order quotation.
What are the products similar to All in one touch screen pc?
The feature labels related to this product include but are not limited to 15 inch lcd screen, all in one monitor, all in one touch screen computer, Transportation digital signage. Some corresponding products are listed as follows, Please click to view:
Can I customize the brand visual identity on All in one touch screen pc?
Yes, we fully support the customized brand visual identity service on All in one touch screen pc.
our All in one touch screen pc can be customised to suit your requirements by adding your logo or printed graphics or even tailoring the colour of product.
We can also carry out hardware modifications to existing products or manufacture bespoke solutions for special projects.
And on the basis of a certain number of orders, the service is free;
Please contact us to confirm your visual identity design, color and location you require;
How about All in one touch screen pc after-sales service?
First of all, we have timely online after-sales service, from the moment you receive All in one touch screen pc, throughout the duration of your warranty and even after your warranty has expired we are here to support you. If you require any assistance setting up or using problems at all, we can provide free technical support via telephone and email.
All of our All in one touch screen pc come with a 1 year commercial warranty as standard but if you want to extend this you can upgrade this to cover a 5 year period at point of purchase.
In addition, we will arrange the designated customer service engineer to follow up the after-sales service of the product in the whole process, including but not limited to online meeting, provision of spare parts, product repair, etc;
